Quality Mori Seiki SL80-B, Mori Seiki SL8-C and SL80-C for Sale
ACS is pleased to offer a selection of CNC machines that will help your company get the job done right. Whether you're interested in our Mori Seiki SL-80-B, SL8-C or SL80-C you'll find exactly what you want. Call us to discuss prices and for more details about our great machines.
Sl8C Mori Seiki in Excellent condition

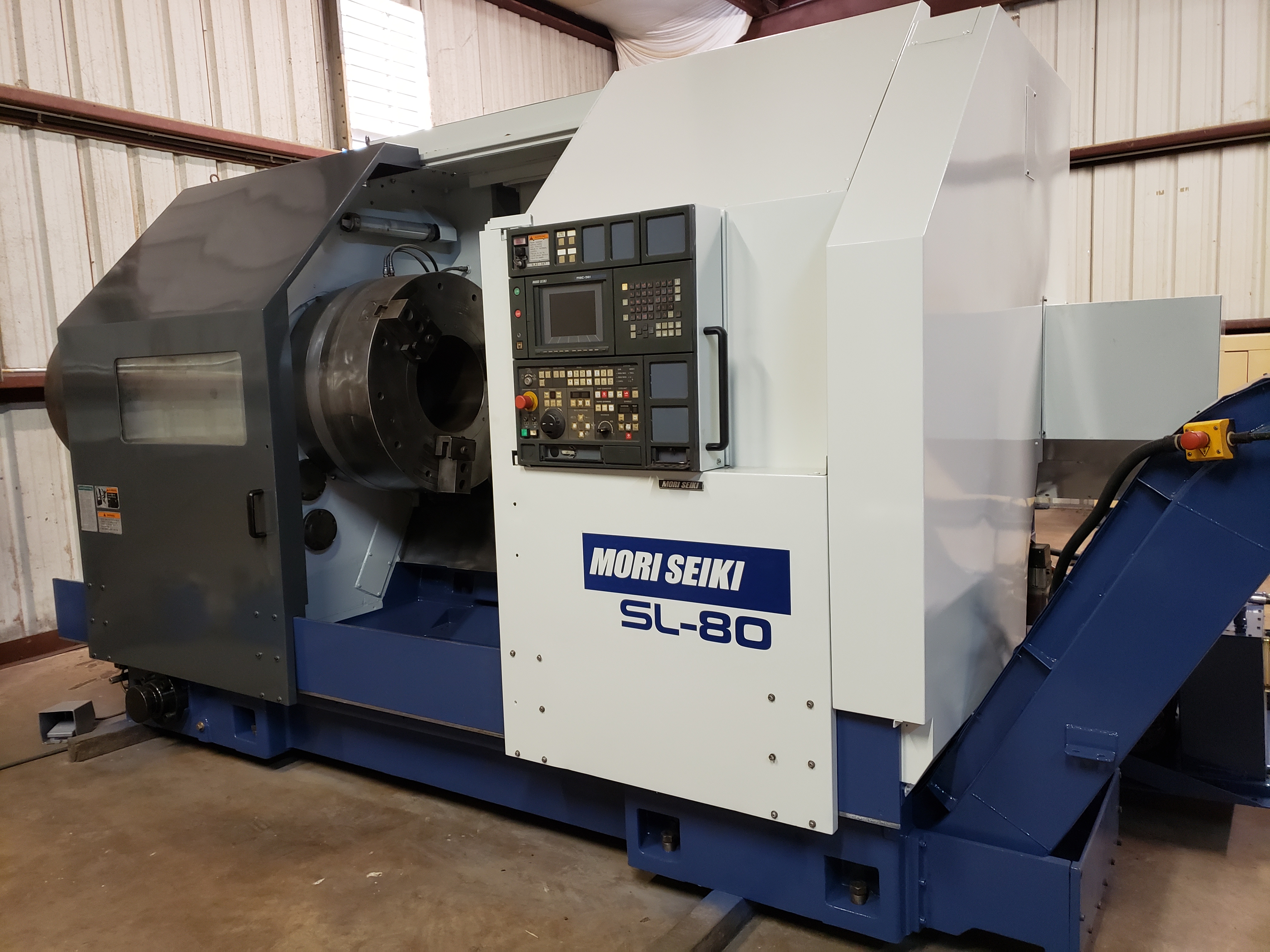

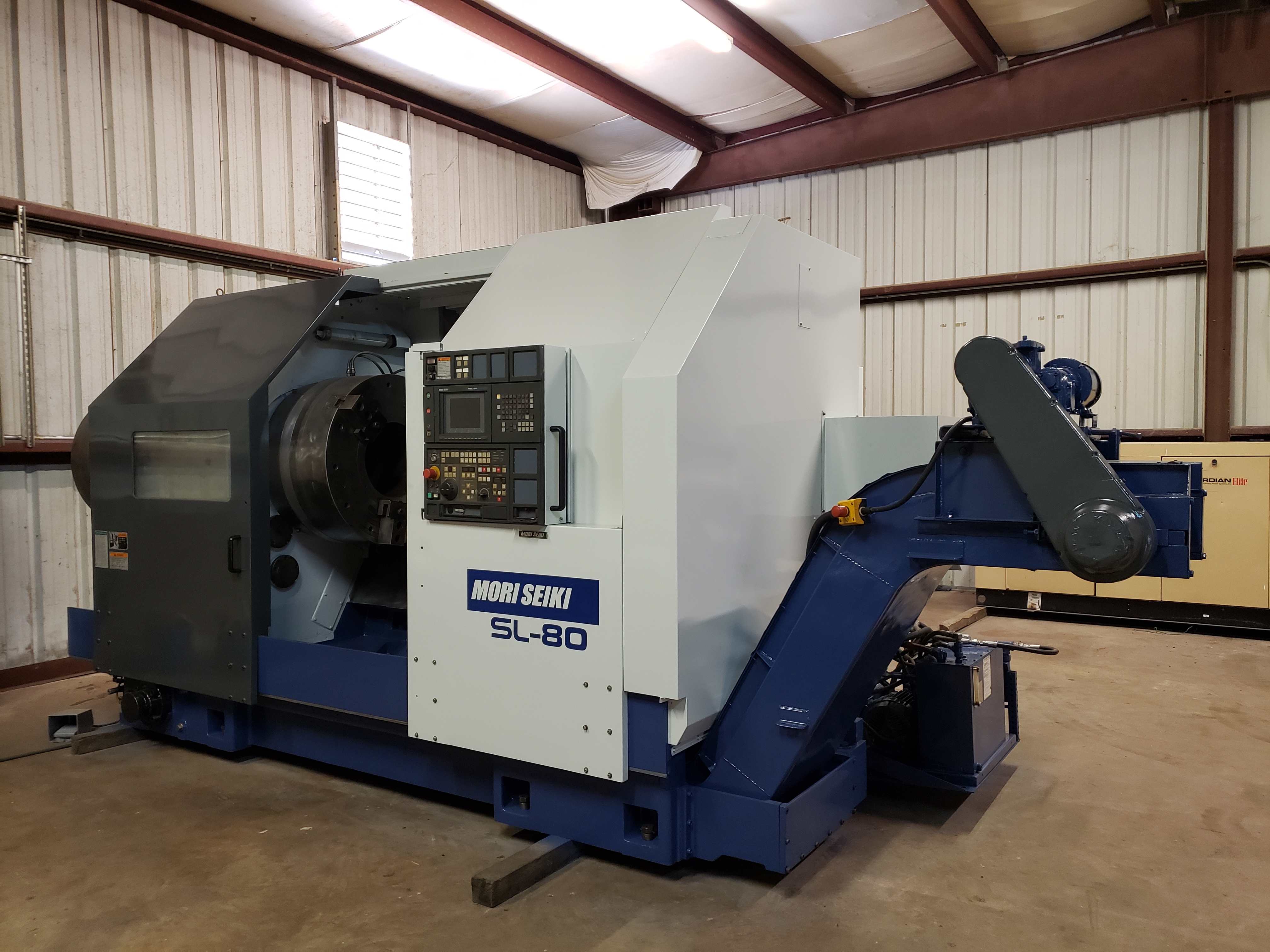

SL80-C Mori Seiki 2000 vintage (Available week of 6/1/2019)
Available week of 5/15/19 Bucking Unit Peck-o-Matic 821 2 3/8" - 17" See bottom of page for Specs

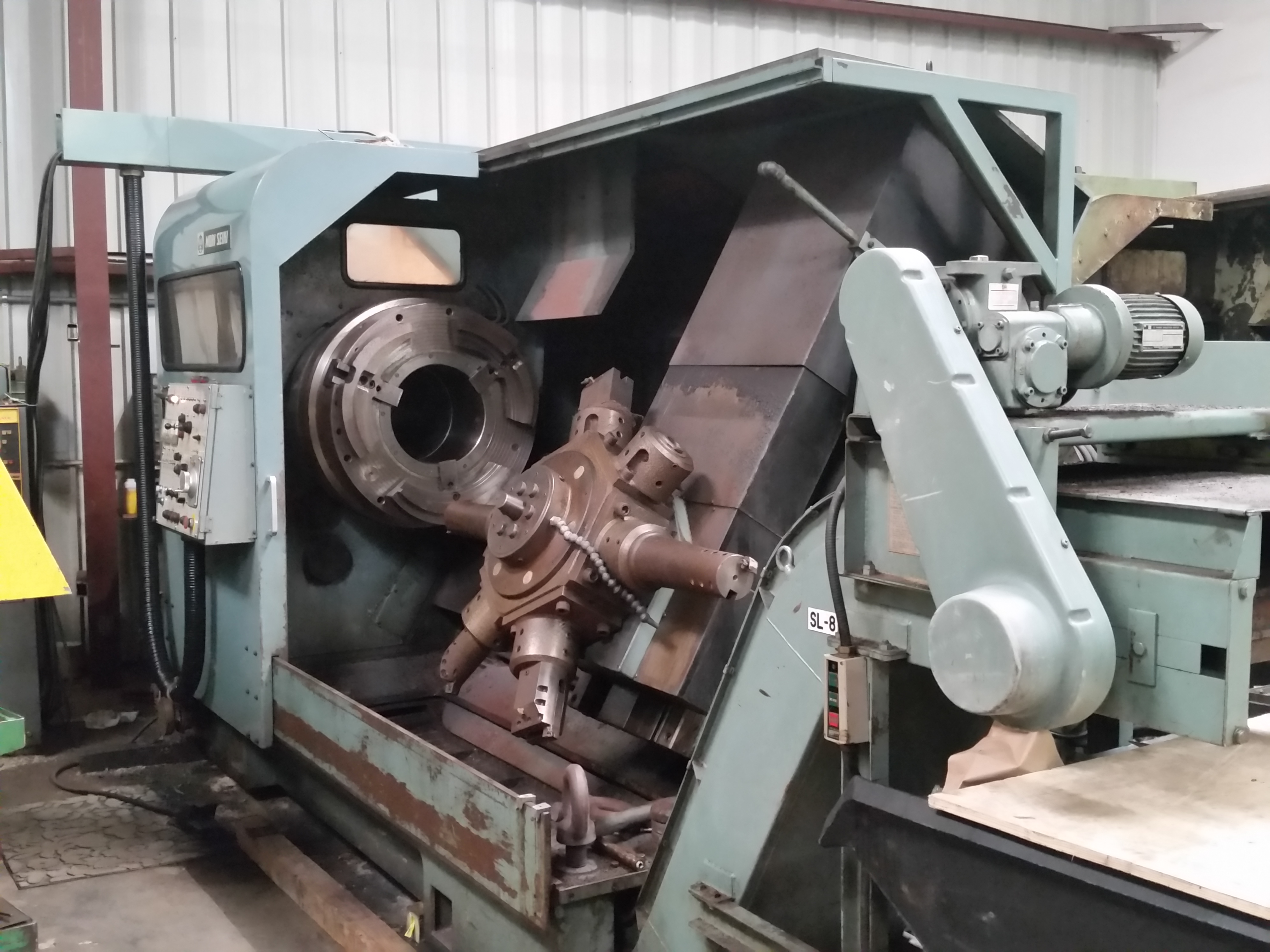

Mori Seiki SL80-B
For sale a Mori Seiki SL80-B with Fanuc 11T Control. It's in great condition and comes equipped with the following:
• Fanuc AC Red Cap Servo Motors • (4) Holders
• (2) Posts • Chip Conveyor
Specifications:
Swing over Bed
39.3"
Swing over Carriage
35.4"
Distance between Centers
43.3"
Max Turning Diameter
35.4"
Max Cross Travel
16.5"
Spindle Bore
10.2"
Spindle Speeds
10-550 RPM
Spindle Nose
A2-20
Turret Stations
6
Slant of Bed
60 Degrees
Main Motor
60 HP
Machine Weight
35,200 lbs
Mori Seiki SL8-C, SL80-C

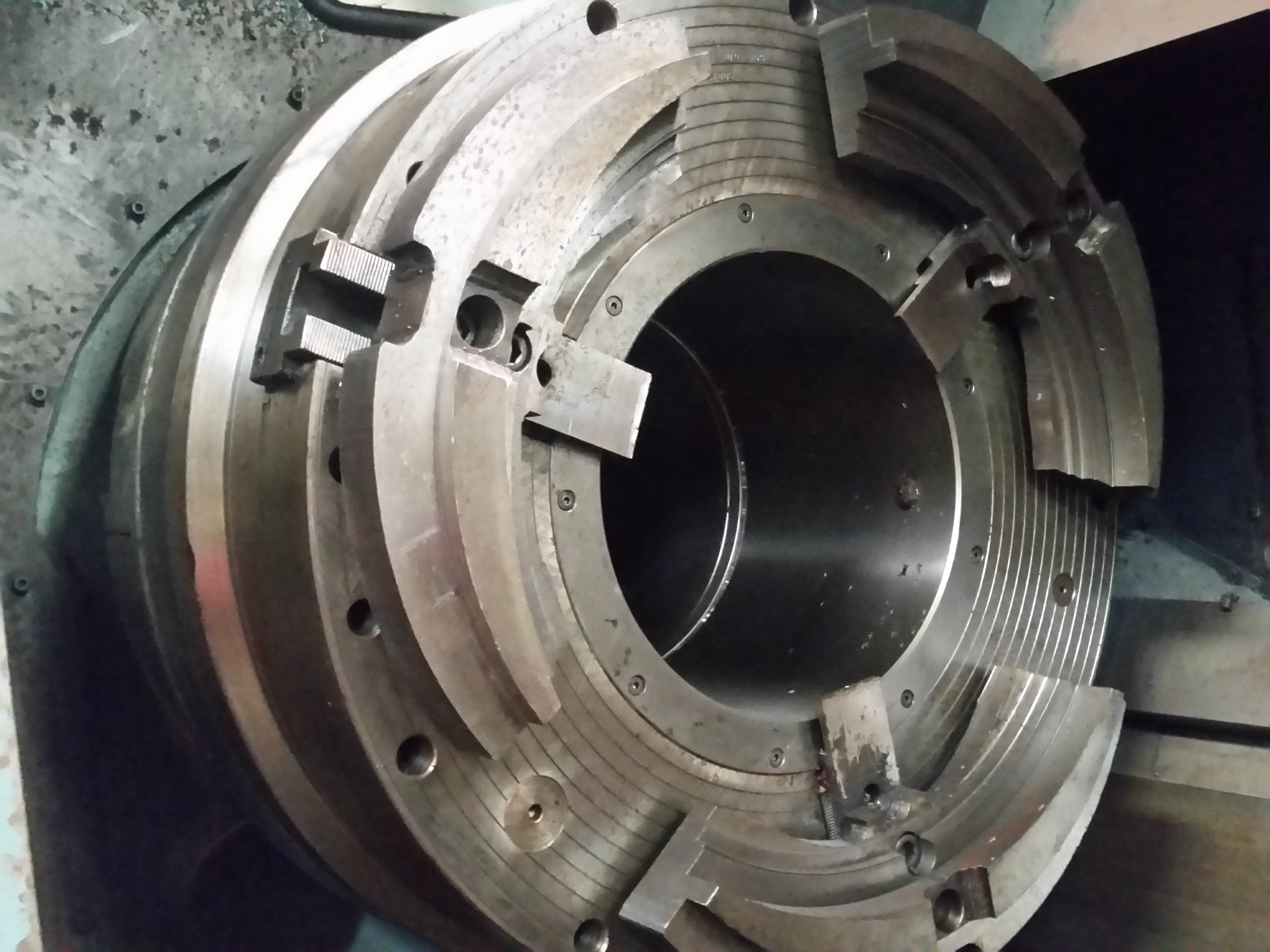

For sale a Mori Seiki SL8-C. It's in excellent condition with a 32" SMW Air chuck
Also available is a 2000 Mori Seiki SL80-C with front and rear SMW Extended stroke chucks (Pictured above)
• Fanuc Control • Holders & Posts
• Fanuc Servo and Motors
Specifications:
Swing over Bed
39.3"
Swing over Carriage
35.4"
Distance between Centers
43.3"
Max Turning Diameter
35.4"
Max Cross Travel
16.5"
Spindle Bore
14.5"
Spindle Speeds
10-370 RPM
Turret Stations
6
Slant of Bed
60 Degrees
Main Motor
60 HP
Machine Weight
35,200 lbs

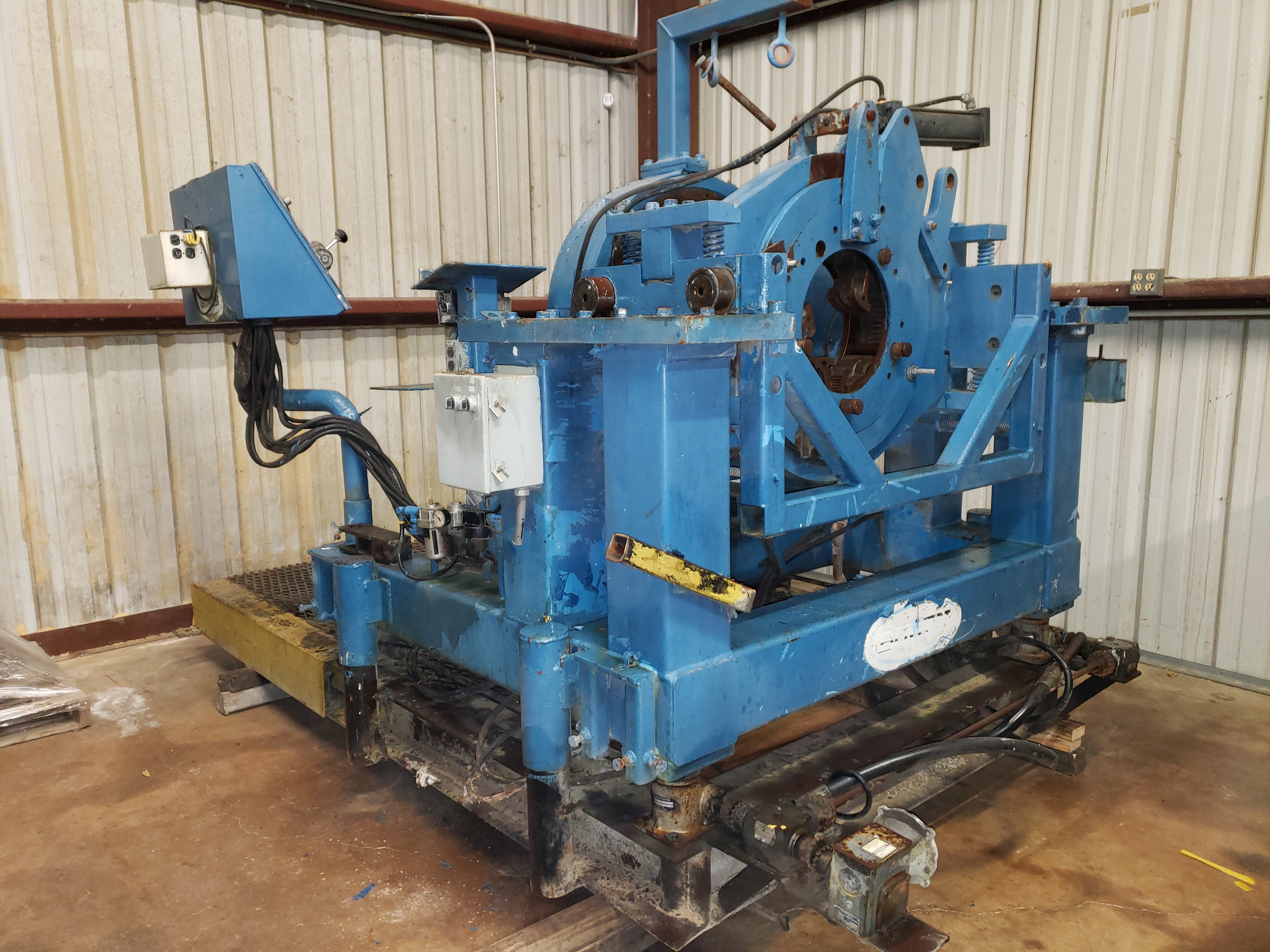

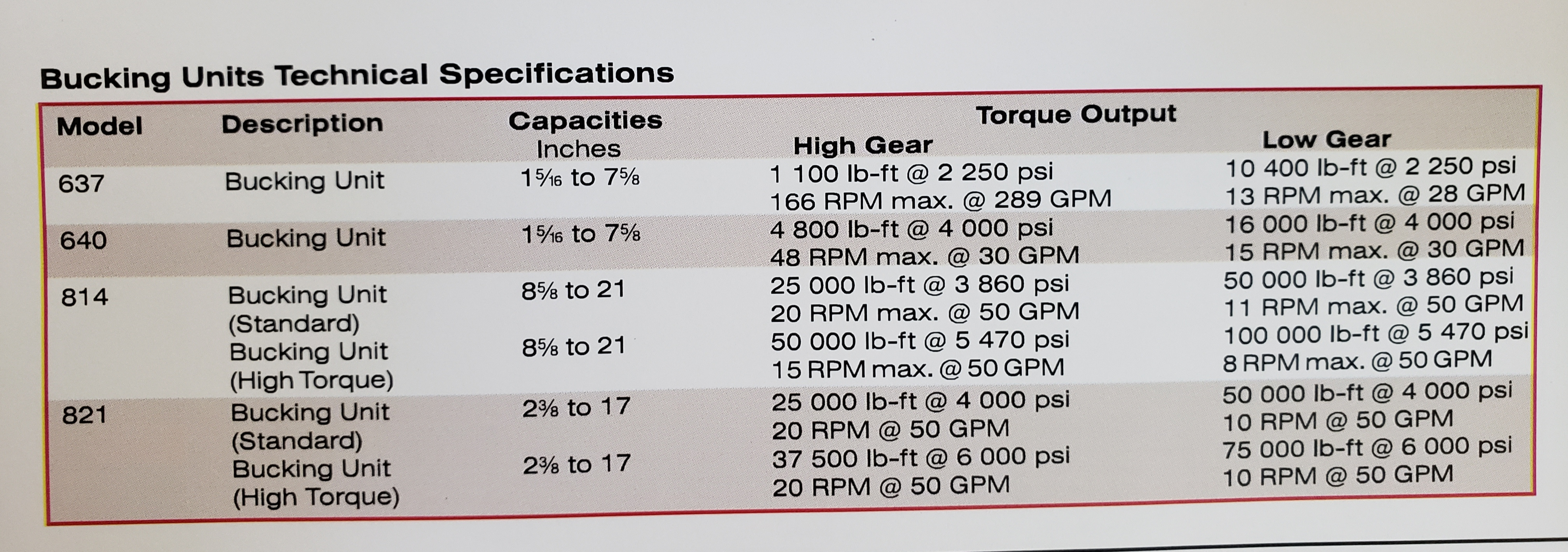

Peck-O-Matic Model 821 Bucking Unit High Torque

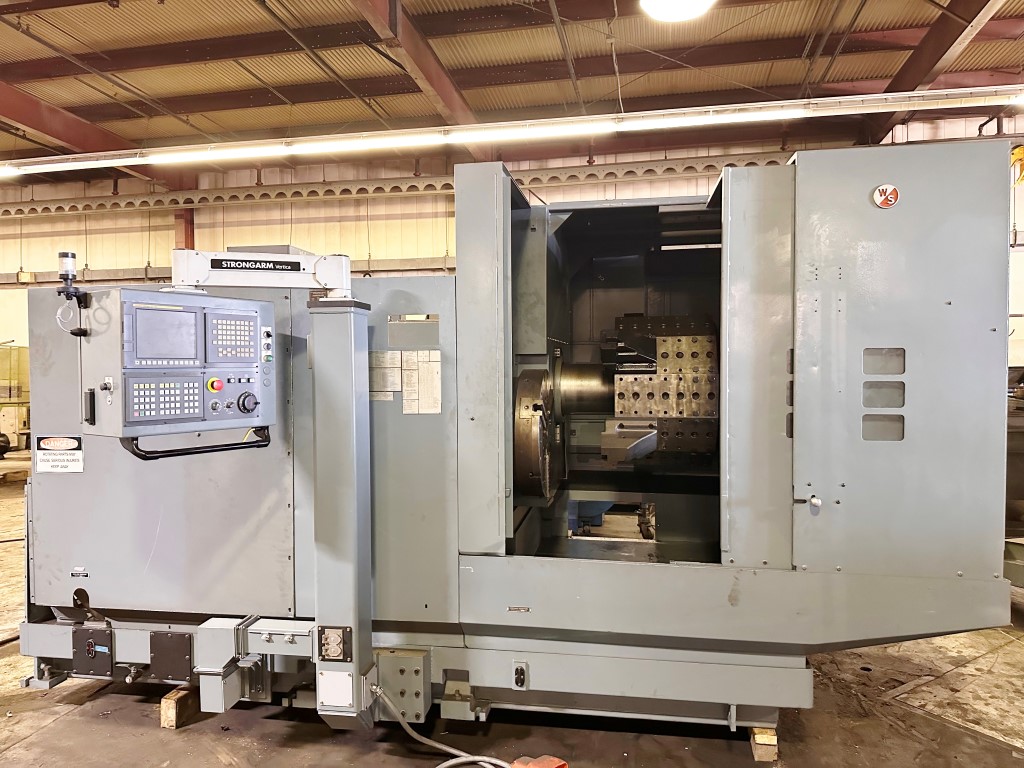

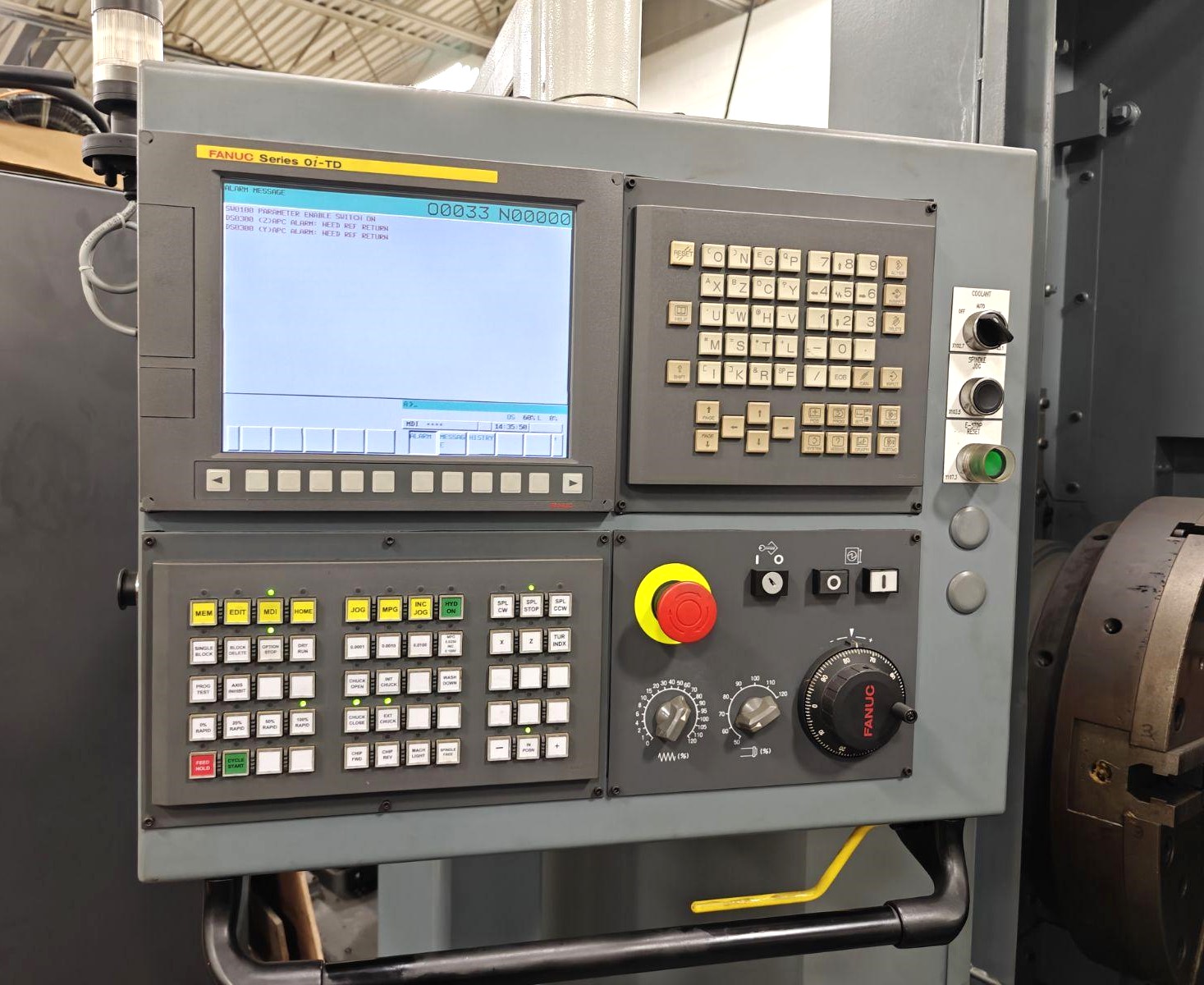

2012 Warner Swasey Retroffited with Fanuc 0iTD
2012 Warner Swasey Retroffited with Fanuc 0iTD Very low Hrs, in Excellent shape Available 5/2024
2012 Warner Swasey Retroffited with Fanuc 0iTD Very low Hrs, in Excellent shape Available 5/2024

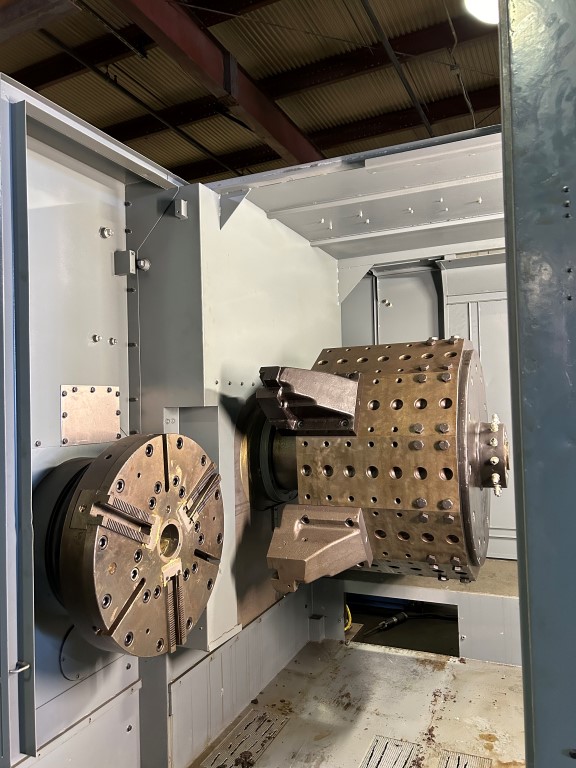

W&S 3SC-24 TURNING CENTER
Retrofitted in 2012 by Bardons & Oliver (B&O)
Excellent Condition
SPECIFICATIONS: Chuck Size: 24" Maximum Swing Diameter Over Turret Bar: 39-7/8" Maximum Swing Diameter Over Turret Face: 18-7/16" Longitudinal Work Area: 33-5/8" Tooling OD Cutter (Qualified): 1-1/2 sq. x 6" Bore In ID Holder: 4" Number of Turret Stations: 12 Turret Length: 20-3/4" Longitudinal Stroke: 15" Cross Stroke: 12-3/4" Maximum Motion Rate: .01 to 250 IPM Motor - Heavy Duty DC Variable Speed: 75 HP Spindle Speeds: 19-838 RPM Spindle Nose: A1-15 Thru Hole in Spindle: 8-1/4" Floor Space (Approx.) With Cabinet Doors Open: 206" x 124" Shipping Weight (Approx.) 32,500 lbs. EQUIPPED WITH:
